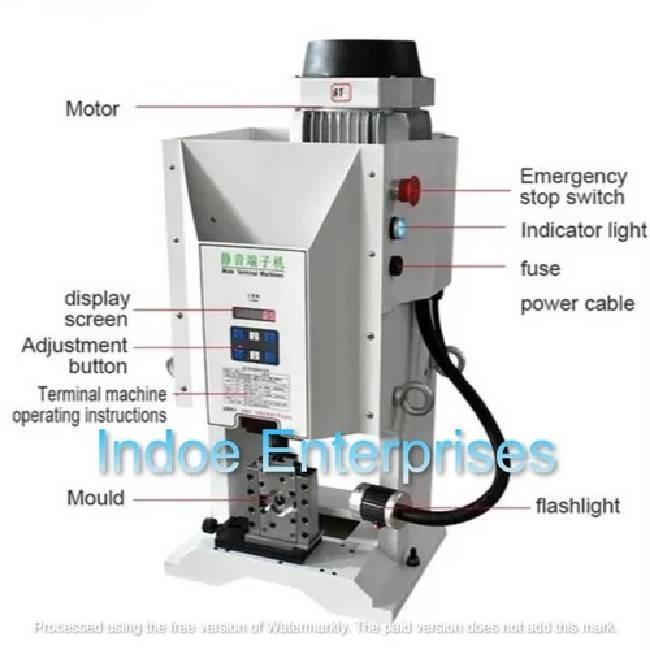

The Terminal/Thimble Wire Crimping Machine is a useful tool for attaching terminals or thimbles to wires in Gautam Buddha Nagar. This machine can crimp multiple sizes of terminals and thimbles with ease, providing a secure and reliable connection. It is designed to be user-friendly, allowing for quick and efficient operation. This machine is ideal for use in various industries, including automotive, electrical, and telecommunications. With its high-quality construction and performance, the Terminal/Thimble Wire Crimping Machine is an essential tool for any business in Gautam Buddha Nagar that needs to crimp wires regularly.

Product Description

Features

·         Foot pedal Operated

·         Mechanical Clutch with Low Noise Operation

·         Wear Resistance and Sturdy

·         Energy Saving

Technical Parameters

·        Model IE-500A

·        Air pressure needed: 0.5-0.8MPa

·        Crimping force: 9T

·        Weight :13kg

·        Dimension: 270*100*150mm

·        Applicable terminal: non-insulated terminals.

·        Die set /mold: Replaceable

·        Remarks: Blank machine, the buyer needs to buy extra die sets.

·        Accessories: Air pipe, foot switch, wrench.

Terminal Range: 6-250mm2

Model: IE- HL-01T

Dimension 1750mm x 1220mm x 1550mm

Placement space 5 sqm

Weight 500kg

Display mode Touch screen LCD display

Power Supply AC220/50HZ

Power 3000W

Working pressure 0.4mpa-0.8mpa

Terminal machine Casting type precision terminal machine

Pressing capacity 2.0T

Machine functions Double-ended tinning, back-end crimping

Wire Range Single electronic wire

Terminal efficiency 1100-1200pcs/h

Stripping length front end 11mm, rear end 11mm

Tin dipping length Within 11mm

Cutting line length 10—40—900mm

Swing arm mode Front and rear ends servo brakes Take-up mode Pendulum arm rotary take-up Transmission structure Precision screw, guide, etc.

Detection device Crimping detection, wire presence or absence, knot detection, and paper Auxiliary device Terminal waste paper rewinding device, terminal waste cutting device

1. Servo control: 7 sets of servo.

2. Pneumatic components: solenoid valve (Festo, Germany), Pneumatic cylinder (Taiwan Yadec), air pressure monitoring (SMC / Panasonic)

3. Guide rail: on the silver / THK

4. Color touch screen: BUCO (Taiwan)

A crimping machine is a tool used to bend a wire or connection to fit into another, making a cold-weld connection. Metals can only be put together using a special connection.The other side of the crimp terminal is attached to an electrical installation. Crimp terminals are used for making a safe electrical connection between the cable and an electrical installation, or another connection.The purpose of the crimping tool is to form a secure connection that is properly sealed from any gas or moisture, preventing shortages or faulty electrical connections. It allows electricians to form a solderless connection between two wires, or to terminate a strand of wire.

Crimping involves using a powerful crimping machine to apply pressure in all directions to a hose coupling to create a tight seal. The pressure is applied evenly through a die that closes slowly, one time only.Hose crimpers work by exerting radial force onto the outside diameter of a hose with a fitting inserted. The crimping die presses onto the hose assembly through the use of hydraulic or pneumatic force. Between hydraulic and manual versions, hydraulic machines are what professional hydraulics contractors generally use.

Introducing our 6. Pneumatic Cable Terminal Crimping Machine, a top-of-the-line tool designed for precision crimping of cable terminals. This pneumatic crimping tool is perfect for any professional looking for efficiency and accuracy in their work. Trust our top hung window brand to provide you with the highest quality pneumatic crimping tools on the market.Upgrade your workspace with our 6. Pneumatic Cable Terminal Crimping Machine from our top hung window brand. This advanced pneumatic crimping tool offers unparalleled performance and durability, making it the ideal choice for professionals in need of reliable tools for cable terminal crimping. Invest in quality with our pneumatic crimping tools.
